Falcon Portable Winch Controller

The Portable Winch Controller Kit gives you the capability to remote control any Falcon Winch Assist controls from nearby.



Winch assist without limitations.

The Portable Winch Controller Kit for Falcon Winch Assist machines turns your versatile excavator-based winch into a further functioning multi-use, multi-application tethering solution.

Attach any machine or mobile piece of equipment with ease and have full control without compromising safety - All while being able to pack down and utilise in other operations or applications in minutes.

Agility Between Applications

PWC
PWC

No time-consuming wiring

The complete kit and all it’s contents come in a portable durable box which fits in almost any cab when the Winch Assist when being used.

Magnetic aerials with over three meters of cable ensure a strong signal without the complicated hard wiring to a specific machine

Overview
Overview
Specifications
Specifications
FAQ's
FAQ's
Talk to us
Talk to us
RO 7 (2)

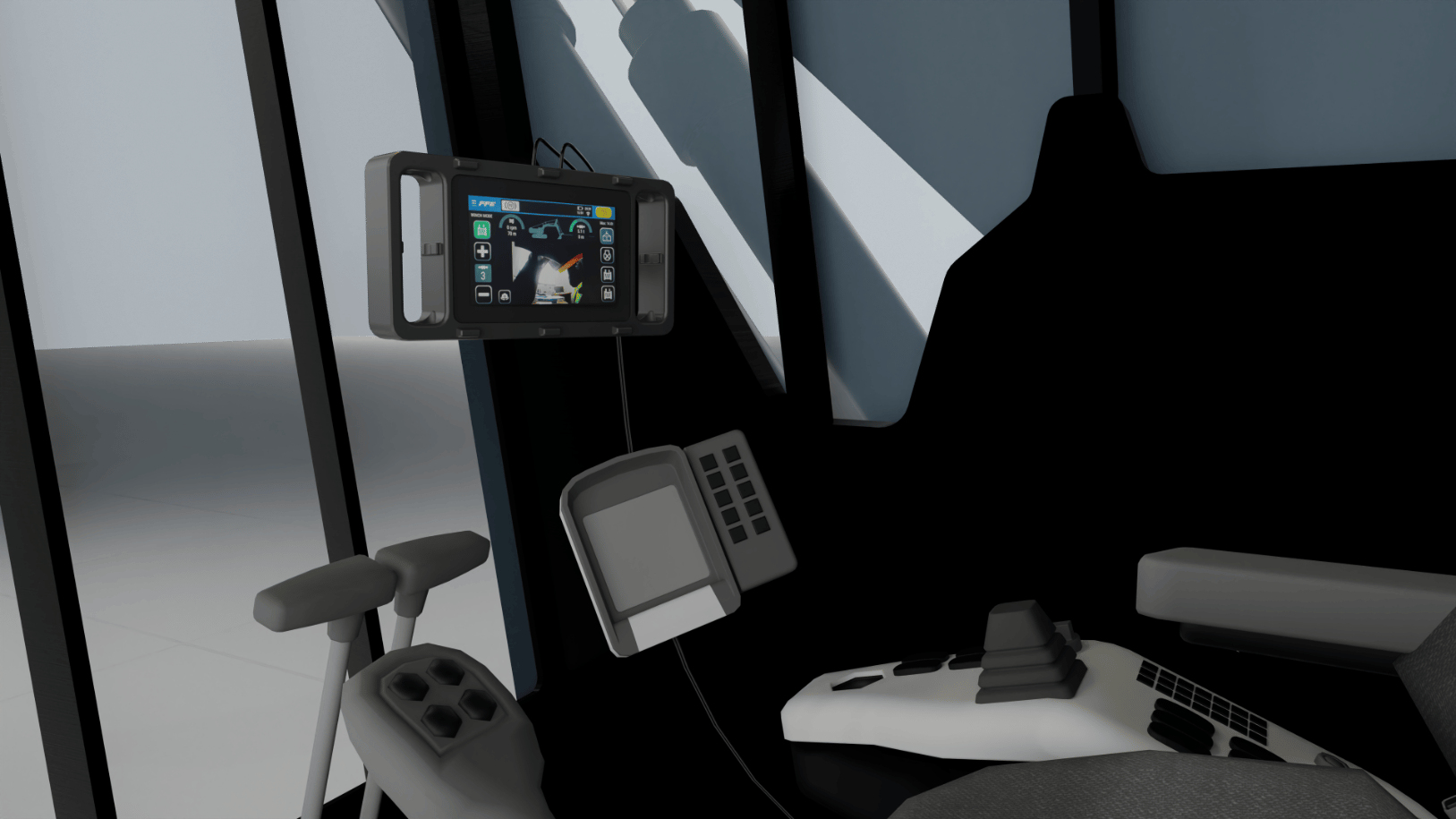

Diverse Application Use combined Meets Unrestricted Mobility

Product overview

See why loggers across the world are choosing the Falcon Portable Winch Controller to add value to their opertation.

Remote Opp test3-1

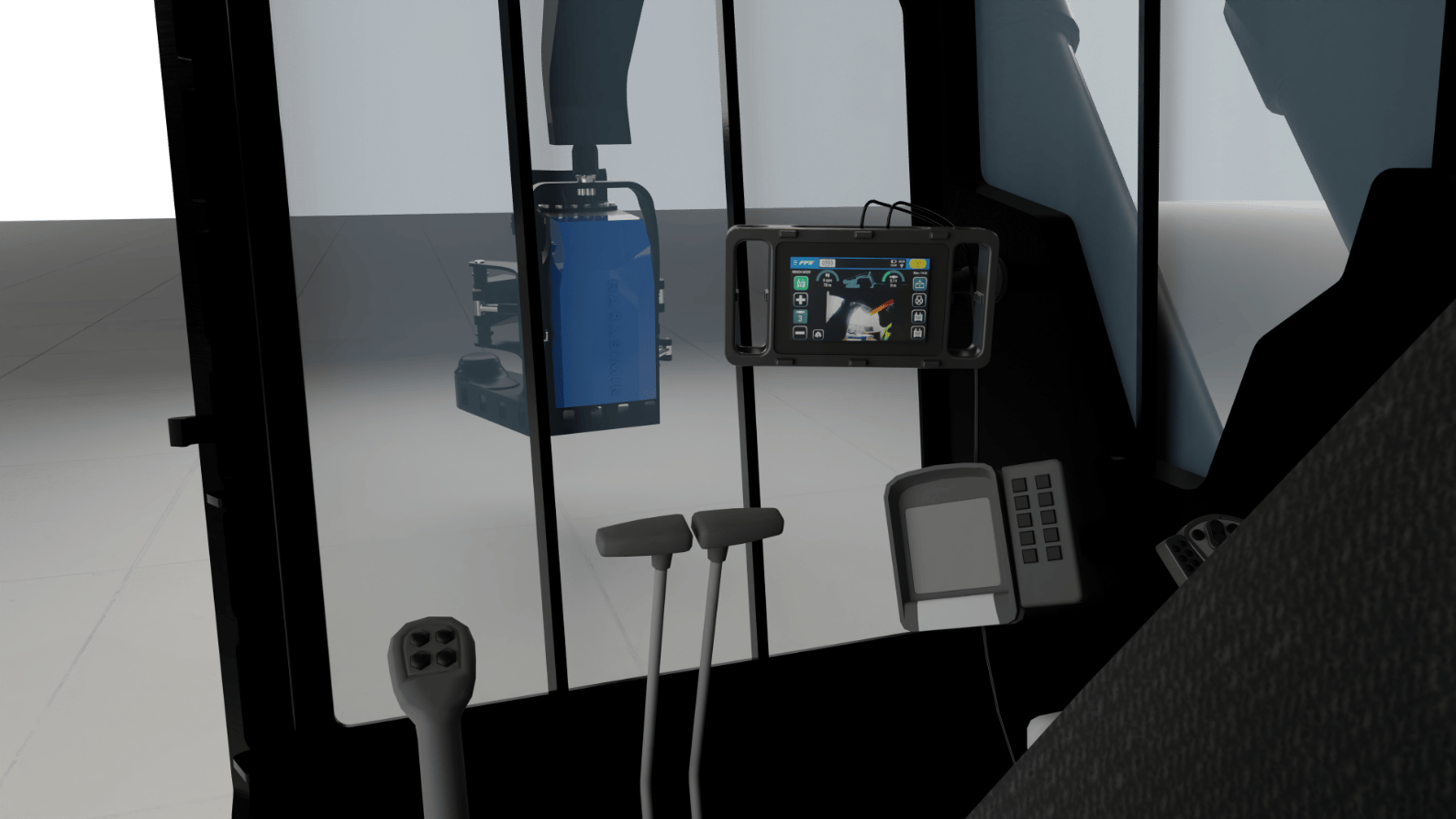

Intuitive Control System

RO 4 (1)-1

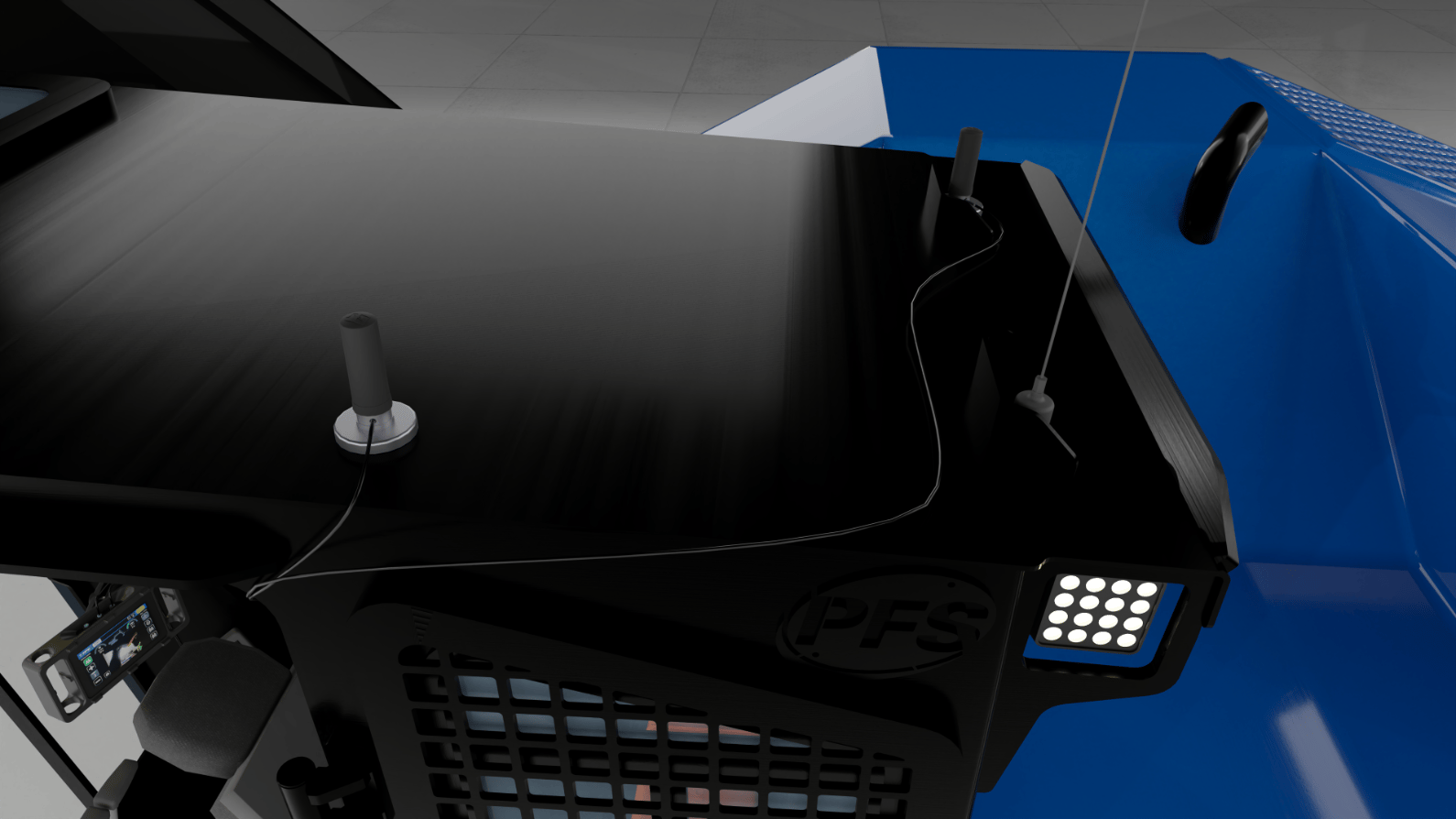

Detachable Aerials

RO 1 (2)

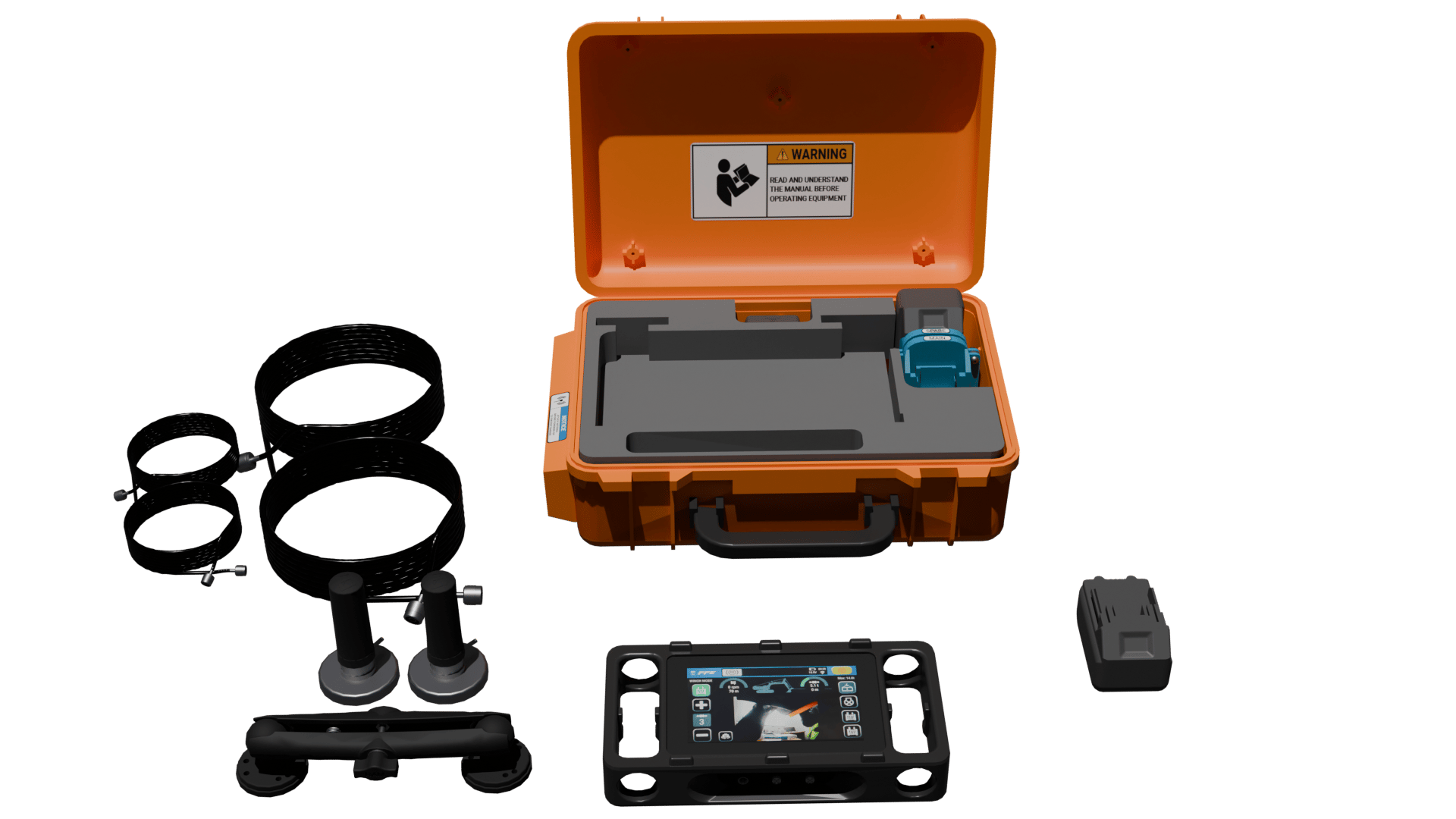

Agile Power System

RO3 (1)-1

Adaptable Screen

RO 9 (1)-1

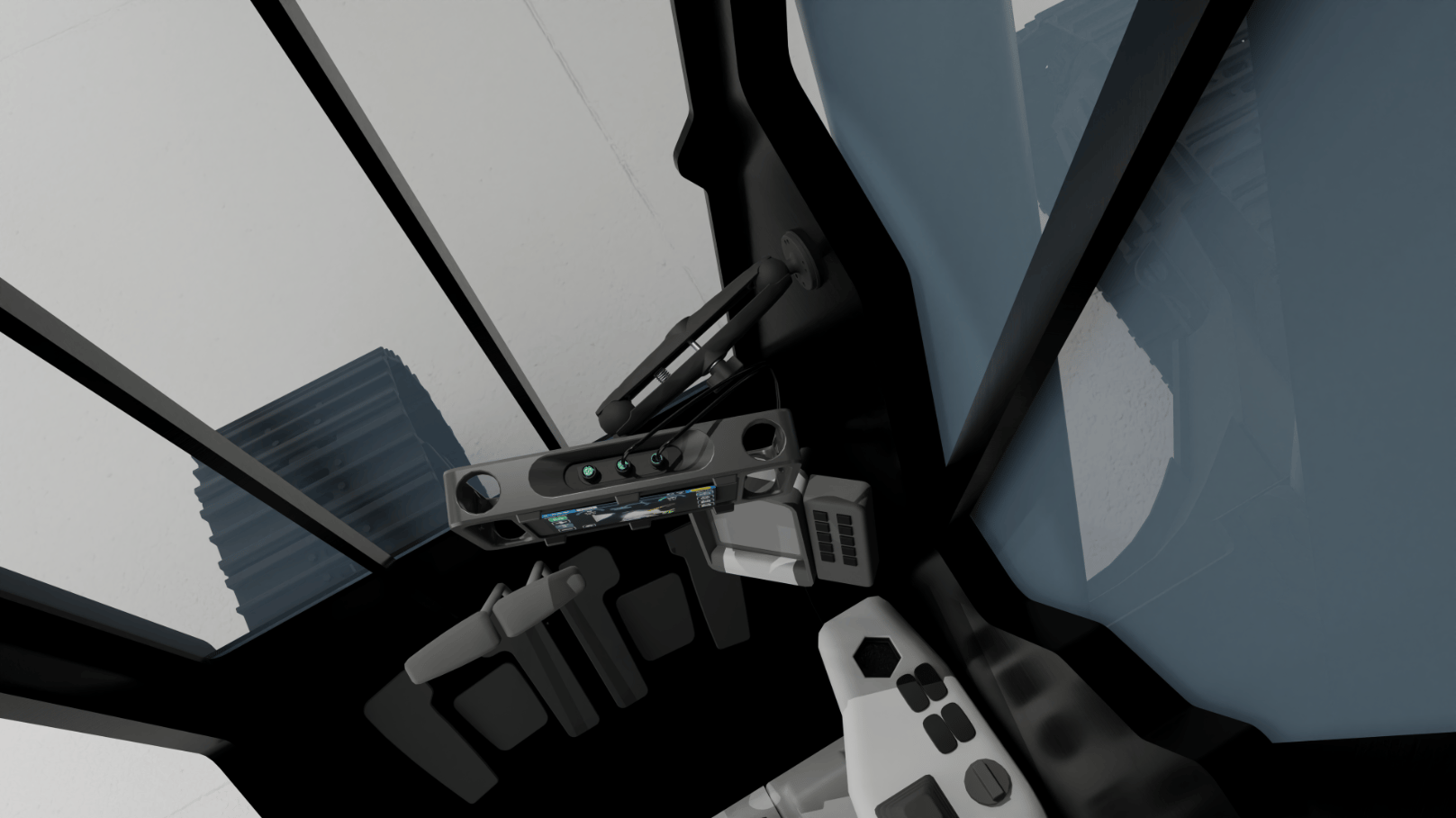

Magnetic Attached Display

RO 2 (2)-2

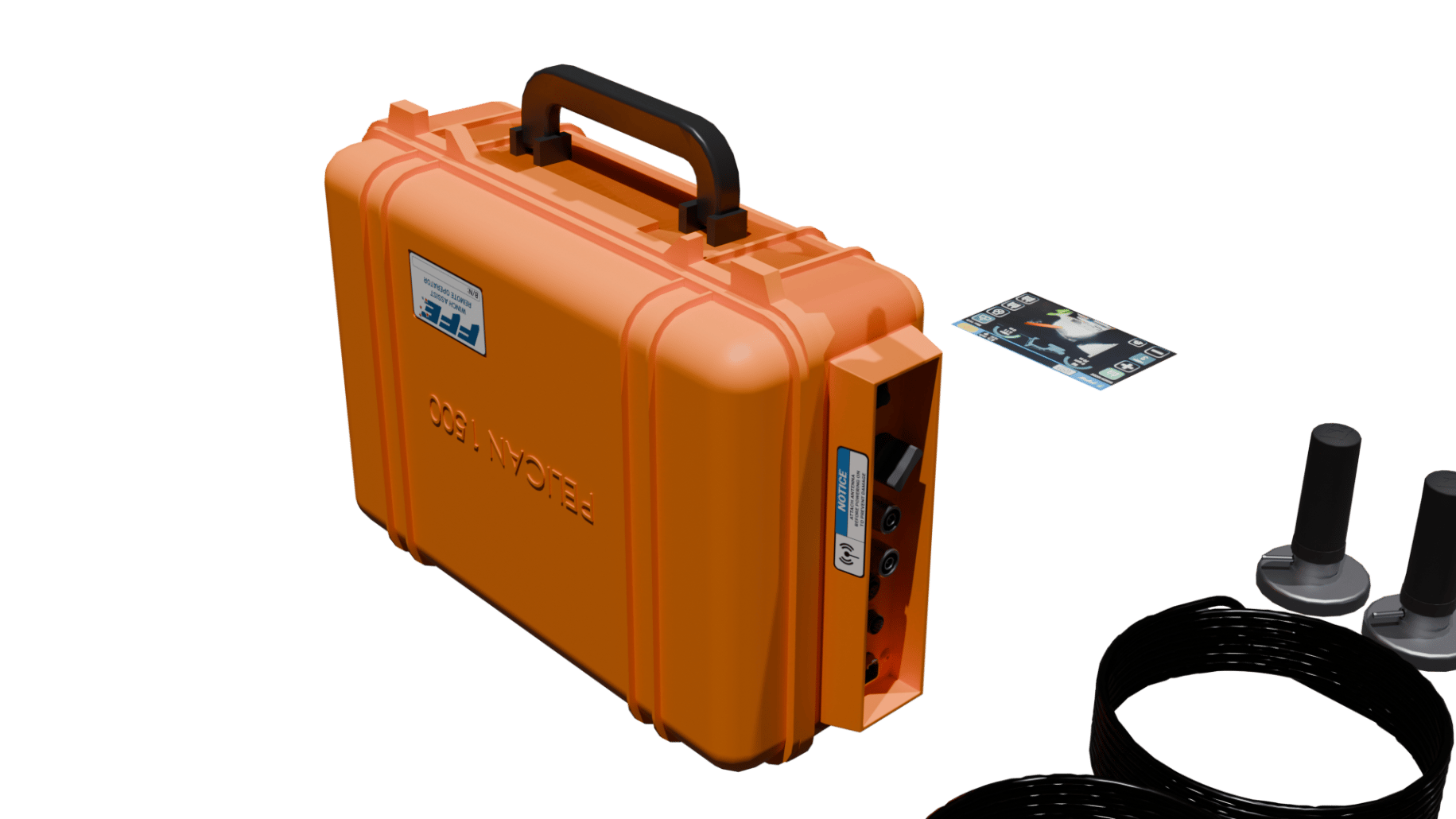

Durable, Portable Box

Machine & Vehicle Recovery

With the benefit of being able to be operated remotely, it provides an excellent solution for situations where being in the cab is of high risk. The winch assist can be operated from up to 500m away which eliminates any risk of people being injured during the recovery.

Firefly_a truck that has rolled over into a ditch on its side lying flat in the united state 80607

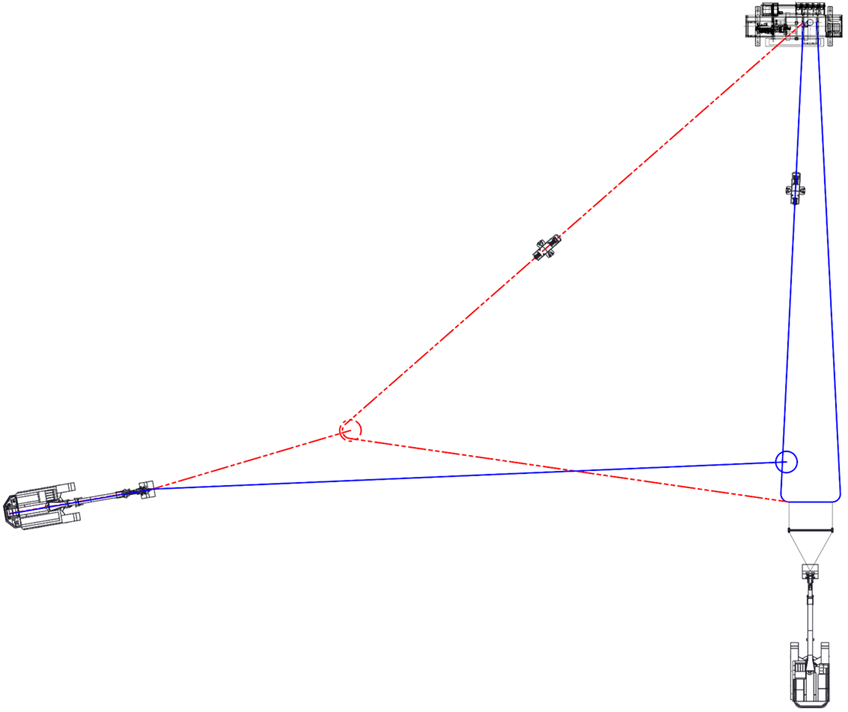

Remote Live Dutchmen

The Portable Winch Controller Kit enables the logging configuration to be used without the need for an operator to sit on the machine for changing the line shifts. The Winch Assist can remotely move the skyline through eight tension settings.

image (2)

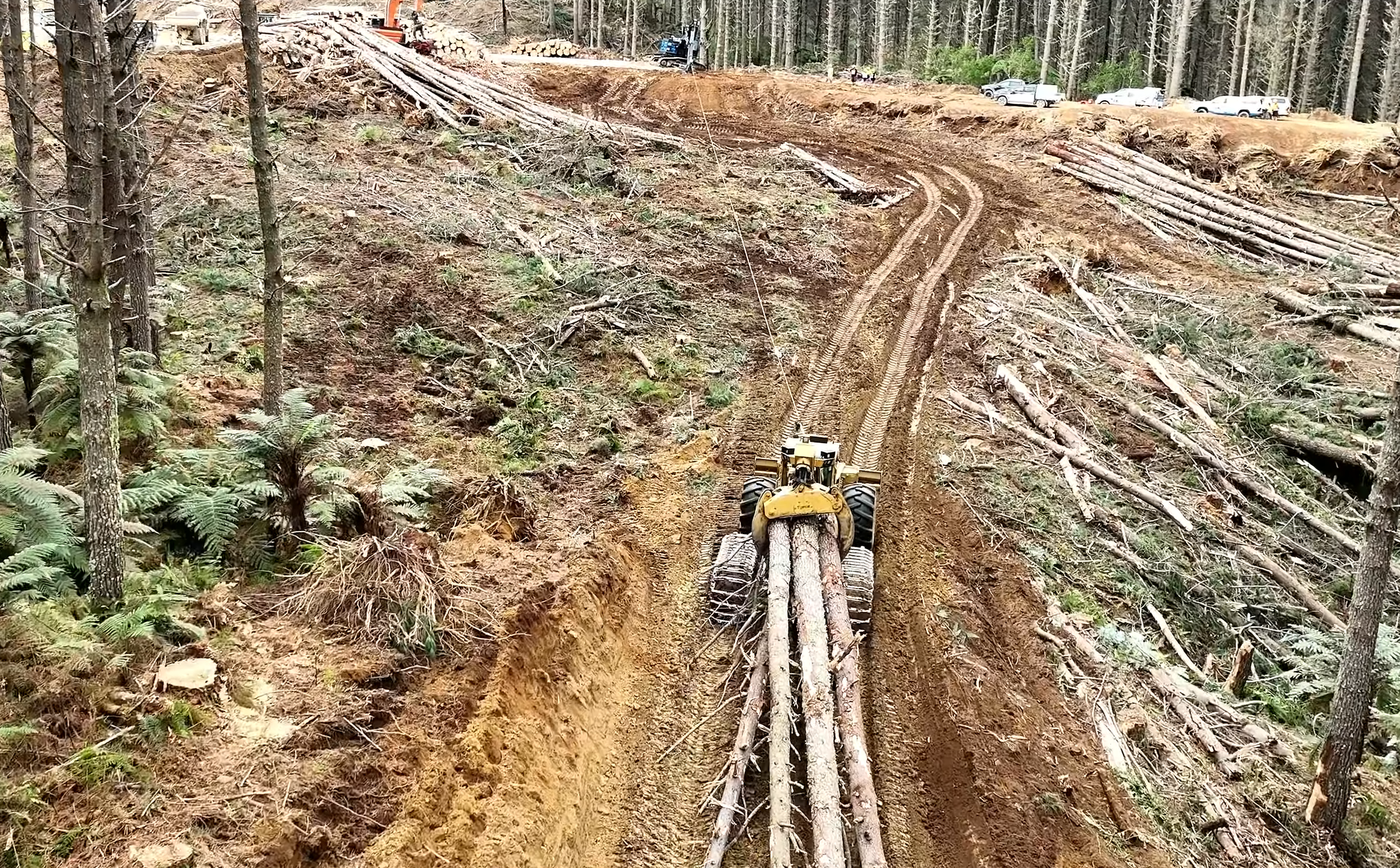

Multi-Machine Operations

For contractors that have a diverse operation or balance ground-based extraction with mechanised harvesting this
upgrade gives agility to winch assist a variety of machines while eliminating additional capital expenses tied to machines with more downtime.

Wild Hog Logging Falcon Winch Assist With Tigercat Skidder and Felling Machines 00-01-59-1

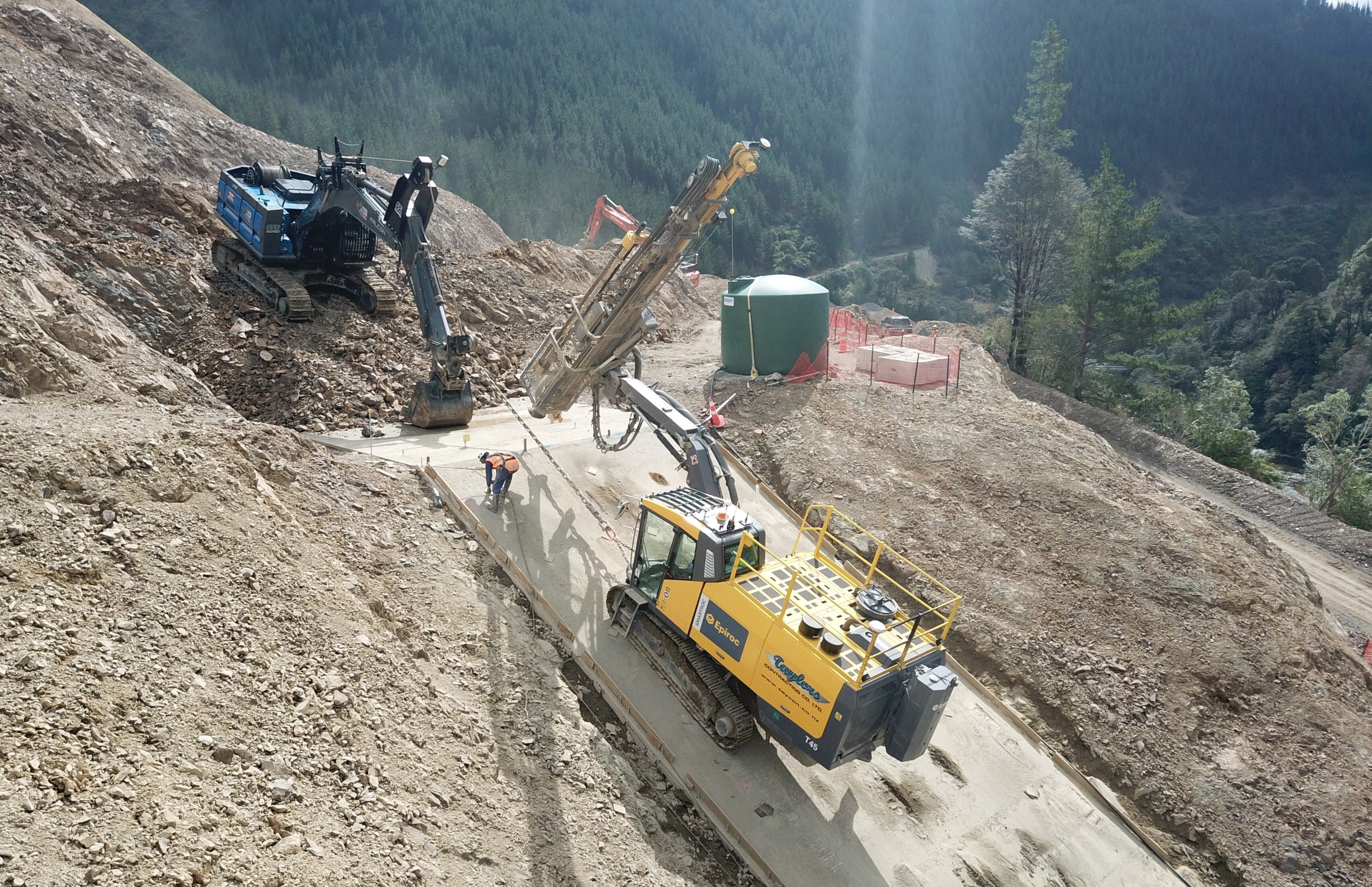

Mining & Pipeline Support

The Portable Winch Controller Kit provides efficient pairing to pipeline installation equipment as it is lowered into the active work setting.

The ability to reset the Falcon Winch Assist to the tow hitch specification of the assisted equipment means uncompromising safety and mitigated machine damage risk.

333was

Adaptable power sources

Diverse operational scenarios reflect the difference industries the Portable Winch Controller Kit can be utilised in and because of this, having adaptable power sources is critical. The Kit can be powered by any 12V, 18V or 24V system, such as machine power supply or a rechargeable battery system.



Adjustable Tension System

The Operator has complete control of the tension settings using a sliding scale tension adjuster on the screen. This ensures the operator has confidence that they are always operating within safe working loads and tow hitch ratings but also having eight tension settings within that scale which are intuitively calculated at the time of connecting to the winch assisted machine.



Diverse Application Use

When you’re not utilising as part of our harvesting operation, the Portable Winch Controller Kit has a range of uses across a diverse range of industries.

Use cases and examples:
› Lowering Tail hold machines
› Remote live dutchman adjustment
› Vehicle or machine recovery

Unrestricted Mobility

With the use of wireless communication
supported by wired components, the complete kit can be transferred and set up in minutes.

Portability benefits:
› Set up in under 15 minutes
› Easily portable between machines
› Adjustable settings to suit the specific use

Specifications

Frequently asked questions (FAQ)

What is the Falcon Portable Winch Controller?

The Portable Winch Controller Kit allows you to operate a Falcon Winch Assist from any machine, anywhere — making it a multi-use, multi-application tethering solution.

What is included in the Portable Winch Controller kit?

The kit includes:

  • Touch screen control with magnetic mount
  • 2x aerials with magnetic mounts
What is the weight of the Portable Winch Controller kit?

 The total weight of the kit is approximately 10.8 kg (23.8 lb).

What is the range of the Portable Winch Controller?

The winch can be operated from up to 500 m (1,640 ft) away.

What power options are available for the Portable Winch Controller?

 The kit can be powered by 12V, 18V, or 24V supplies (such as a machine’s electrical system) or by a rechargeable Makita 18V battery.

What are the winch tension settings for the Portable Winch Controller?

The Portable Winch Controller allows you to adjust tension across eight calculated settings, from a minimum line tension of 300 kg to a maximum line tension of 21 tons.

What temperatures can the Portable Winch Controller operate in?

The Portable Winch Controller operates reliably between –30 °C and +45 °C (–22 °F to 113 °F).



What is the aerial cable length for the Portable Winch Controller?

Each (x2) magnetic aerial has a 5 m cable length which can be mounted to any metal surface such as the top side or back of the cab.

What Wi-Fi frequency does the Portable Winch Controller use?

The Portable Winch Controller operates on the 900 MHz frequency.

Is the Portable Winch Controller compatible with any winch assist?

The Portable Winch Controller is compatible with Falcon Winch Assist numbers WA65 onwards. Some will require minor wiring and software updates may be needed depending on updates since the original purchase of the machine

Consult your nearest distributor for more information on what is required for a specific machine.

Can the Portable Winch Controller be used across industries beyond forestry?

Yes, this includes use-cases within mining, pipelines, and construction applications. Examples within these include: live Dutchman adjustments, tail hold machine recovery, multi-machine winch assisting

What certifications or standards does the Portable Winch Controller adhere to?

It adheres to AS3990 and AS1418

What additional extras are available for the Portable Winch Controller?

 Series 2 and Series 3 Wi‑Fi radio systems, batteries, charger can be purchased as additional extras

What is the warranty for the Portable Winch Controller?

It comes with a 12-month warranty.

How long does it take to set up the Portable Winch Controller?

 It can be set up and operational in under 15 minutes.

Can I operate the Portable Winch Controller from inside the cab?

Yes, thanks to its magnetic bracket mount, the screen can be used from inside the cab or positioned elsewhere for added safety.

How many tension settings are available for the Portable Winch Controller?

The controller has eight tension settings calculated based on the winch and equipment in use.

What is the maximum line tension available for the Portable Winch Controller?

The maximum line tension is 21 tons (and the minimum is 300 kg), ensuring safety and compatibility across a range of equipment and jobs.
